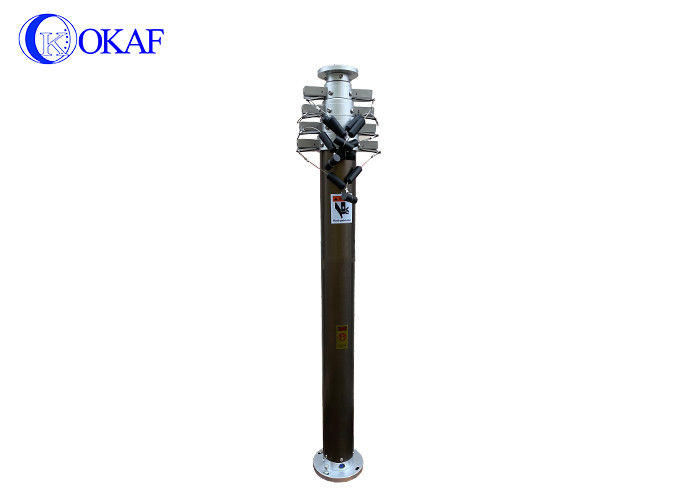

CCTV 6m 20ft Self Locking Pneumatic Telescopic Rod

CCTV 6m 20ft Self Locking Pneumatic Telescopic Rod
CCTV 6m 20ft Self Locking Pneumatic Telescopic Rod

Large Image :  CCTV 6m 20ft Self Locking Pneumatic Telescopic Rod

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE/FCC/ROHS
Model Number: OK-QD06G-02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negociate
Packaging Details: Standard export wood box
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C,paypal
Supply Ability: 2000 units/ month
Detailed Product Description
Material: Aluminum Alloy 6063 Mast Type: Self Locking Pneumatic Telescopic Mast
Extended Height: 6m (20ft) Retracted Height: 1.65m( 5.41ft)
Top Payload Weight: 20kg (44lbs) Section: 5 Sections
Customized: Support Mast Color: Silver/ Bronze Or Others Customzied
Warranty: 12 Month
High Light:

Self Locking Pneumatic Telescopic Rod

,

6m Pneumatic Telescopic Rod

,

20ft CCTV Surveillance Mast Antenna

6m (20ft) Pneumatic Telescopic Self Locking Rod CCTV Surveillance Mast Antenna Tower for Ground Vehicle Mounted



Product Description

Feature of Self locking Pneumatic Telescopic Mast:

Our pneumatic telescopic mast mast lifter is also a rack height equipment carrier, suitable for car, ship and land.

It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely.

After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely.

Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on.

It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.












Self locking telescopic mast with tripod



 self locking.jpg



Pneumatic mast





Self lock telescopic mast.jpg



 What's the advantages of the pneumatic telescopic mast ?

1. Wide range application. Suitable for vehicle, vessel and ground systems.

2. Fast lifting. Within 1 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.

3. Portable. The telescopic mast is lightweight, with the wheels, you can take it easily.

4. Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.

5. Long life span. The aluminum mast is anti corrosive which can long last many years.

6. Customized available. The height, payload and function of pneumatic mast can be customized according to your requirement.

7. Offer solutions. Our professional technician team help to provide best solution according to the needs.

8. With self locking at each section. Mast



Application

Applications



The system uses pneumatic handspike theory.it can use RS485 to control lifter .Its good self-locking performance 47
achieving reliable ,self-locking in any position improves the safety of reliability.



OKAF Telescopic mast are widely applied to military, communications, police, fire truck and so on.

1. Radio installation Surveying

2. Temporary communications.

3. Emergency services (Light tower for fire fighting rescue)

4. Mobile surveillance ( PTZ camera for law forensics)

5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)

6. Construction site surveillance(construction sites monitoring)

7.Wi-Fi antennas.

8. Mobile solar trailer & mobile light tower.



telescopic mast application





APPLICAITON





APPLICATION MASTS





Packaging & Shipping

 All of the telescopic masts will be package with standard export wood box.

Packing



Accessories of pneumatic telescopic mast

accessories



Technical data

Model Retracted height(mm) Extended height(mm) Maximum diameter(mm) Top payload(kg) Number of section
OK-QD-35G-01 1649 3500 133 120 3
OK-QD-45G-01 1684 4500 133 100 4
OK-QD-55G-01 1799 5500 133 40 4
OK-QD-60G-01 1650 6000 140 40 4
OK-QD-65G-01 1792 6500 133 80 5
OK-QD-75G-01 1811 7500 160 80 6
OK-QD-85G-01 2300 8500 140 40 5
OK-QD-90G-04 2200 9000 160 40 6
 OK-QD-100G-04

 2200

 10000 160   40  6
 OK-QD-110G-04  2400   11000  160  40
OK-QD-120G-01 2400 12000 180 40 7
OK-QD-150G-01 2900 15000 202 40 8
OK-QD-180G-01 3400 18000 202 70 7
OK-QD-200G-01 3300 20000 229 70 8
