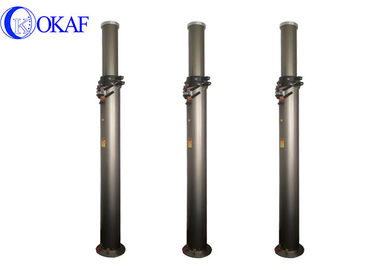

Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole

Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole
Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole

Large Image :  Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole

Product Details:
Place of Origin: China
Brand Name: OKAF
Certification: CE ROHS
Model Number: OK-QD10G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wood box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Units/month
Detailed Product Description
Extended Height: 10 Meter Retracted Height: 2200mm
Top Payload: 40kg Max Diameter: 160mm
Mast Weight: 65kg Number Of Section: 6 Section
Material: Aluminum Alloy
High Light:

portable telescoping antenna mast

,

pneumatic telescopic mast

Self locking Telescopic Tower 10m 40kg Payload Aluminum Antenna Mast Pole



Product specification :

OKAF pneumatic telescopic mast mast lifter is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting,etc.



Environmental adaptability
Items Test condition
Anti-wind capability Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13
Low tempertaure storage -55°
Low tempertaure working -40°
high temperature storage 70°
high-temperature working 55°
Humidity less than 90%(temperature 25°)
Exposed to the rain Strength 6mm/min, the time of duration is 1 hour
Antiseptic Refer to GJB150.11A-2009 Standard test
Dust-proof Refer to GJB150.12.1986 Standard test
Solar radiation Refer to GJB150.7.1986 Standard test
Mould Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1
Operating Pneumatic Mast
Level of rotation speed 6r/min
Vertical of rotation speed 66Km/h
Control way RS485,Pelco-D/P agreement,remote control
Material aluminium alloy
Security Self-locking at any height; would not fall at any time
Strap Strap tie every self-lock



Technical data



Name Model Extended height Retracted height Section number Maximum
Diameter
Top payload Mast Weight

Self lock pneumatic

telescopic mast

OK-QD-100ETX 10000mm 2200mm 6 160mm 40kg 65kg



Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole 0

Self Locking Pneumatic Telescopic Mast Tower 10m Payload Aluminum Antenna Pole 1
