| Load: | 5-30kg | Anti-wind Capability: | Level 12 Wind: Can Not Be Destroyed |
|---|---|---|---|
| Linear Way: | Outset | Keyword:: | High Mast Lighting Tower |
| Material: | Aluminum Alloy | OEM/ODM: | Welcome |
| Mounted: | On The Ground Or Vehicle | ||
| High Light: | portable telescoping antenna mast,pneumatic telescopic mast,Manual Telescoping Camera Mast |
||

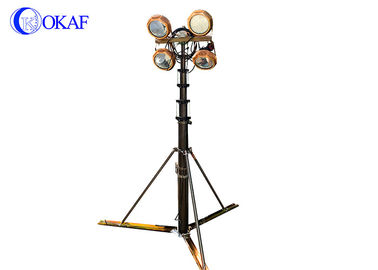

10m Aluminum Manual Telescopic Antenna Mast Surveillance Camera Mast Tower
Manual telescopic mast operation instruction:
1. Insert the hand crank, turn it in clockwise to rise, and stop rising when a red mark show.
2. Turn it in counterclockwise, the mast descends under loading. (If the load capacity is less than 5KG, you could pull down the guy wire of the upper section while turn it in counterclockwise to descend the mast.)
Precautions:
1.It is not allowed to use without guy wires.
2.In the process of descending, if any steel wire rope is found loose, it should stop descending. Please rise the mast in clockwise to tighten the rope, and then descend the mast.
|
Environmental adaptability: |
|
|
Items |
Test condition |
|
Telescopic mast |
|
|
Anti-wind capability |
Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13 |
|
Height |
Can customize 3-18m |
|
Operation mode |
Hand cranking |
|
LED light |
100 each |
|
Linear way |
outset
|
|
Bearing weight |
According to the height of lifting rod and installation items to determine |
|
Interface |
150 flange interface |
|
Humidity |
less than 90%(temperature 25°) |
|
Maintainability |
Wearing parts easy to disassemble; components can be repaired and maintained by tools; general maintenance and repair time≤30min |
|
Security |
Self-locking at any height; would not fall at any time |
|
Tripod |
|
|
Material
|
ferrous material
|
|
effect
|
Fixed telescopic mast |
|
Size |
According to the height of the telescopic mast to determine. The higher the level, the bigger the tripod. |
Related Products:
Optional holder camera mounted on the mast.
|
|
|
|
|
|
