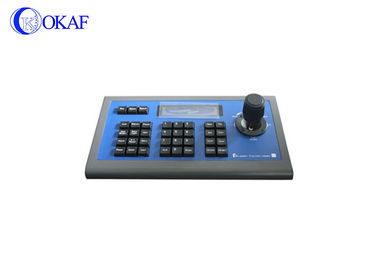

Visca Keyboard PTZ Camera Controller 3D Joystick DC12V Power Anti - Radar Design

Visca Keyboard PTZ Camera Controller 3D Joystick DC12V Power Anti - Radar Design
Visca Keyboard PTZ Camera Controller 3D Joystick DC12V Power Anti - Radar Design

Large Image :  Visca Keyboard PTZ Camera Controller 3D Joystick DC12V Power Anti - Radar Design

Product Details:

Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-JPRM32TS-I

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Joystick: 3D(control: Up, Down, Left, Right, Zoom) Power Supply: DC12V±10%
Warranty: 1year OEM/ODM: Welcome
Advantage: RS485 Control Display: Blue LCD
Weight (Kg): 2.8 Power Consumption: 6W MAX
High Light:

ptz camera keyboard controller

,

joystick ptz controller

Visca Keyboard Controller Control SONY Video Conference Cameras



Product description:

  • Specially design for SONY video conference camera, completely compatible with VISCA protocol
  • Can set the address code of SONY video conference camera independently
  • Refurbish the program on line, compile corresponding promotion program according to the protocol and command provided by customer, customer connect keyboard controller through RS485 interface on the computer to update firmware
  • Unique control code learning function, customer can revise the control code command voluntarily
  • Multifold communication mode: RS485, RS422, RS232.
  • All parameters are set by key-press operation procedure, it is convenient and fast
  • Control the rotation of speed dome camera and swinging angle of joystick with nonpolar variable speed control to embody speed dome camera’s rotating speed real-time.



Basic Function:

RS485 control bus, can control 7pcs SONY video conference cameras Max. Can set and call 1-46 preset position of SONY video conference camera All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters Maximum sub-control keyboard:16 Keyboard operation password on/off/lock function Key-press warning on/off function LCD display



Parameters:



Model OK-JPRM32TS-I
Protocol VISCA
Baud rate(bps) 9600bps
Control Address Control 7pcs SONY cameras at the most, address code:0-6
Communication Mode

RS485 half-duplex, RS422 full-duplex, RS232 serial port

10M internet(select to order),USB(select to order)

Communication Range RS485, RS422: 1200m, RS232: 10m
Cascade connection number 16 sub-control at most, controller ID:0-15
Joystick 3D(control: up, down, left, right, zoom)
Interface Mode 10PIN pressing line port, DB9 connector
Display blue LCD
Warning Tone Key-touch beep on/off
Power Supply DC12V±10%
Power Consumption 6W MAX.
Working Temperature 0℃--50℃
Store Temperature -20℃--70℃
Dimension (mm) 320×179.3×109.9
Weight (Kg) 2.8
