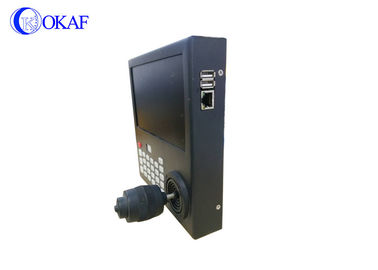

3- Axis Joystick RS485 CCTV PTZ Controller For IP Camera 1 Year Warranty

3- Axis Joystick RS485 CCTV PTZ Controller For IP Camera 1 Year Warranty
3- Axis Joystick RS485 CCTV PTZ Controller For IP Camera 1 Year Warranty

Large Image :  3- Axis Joystick RS485 CCTV PTZ Controller For IP Camera 1 Year Warranty

Product Details:

Place of Origin: China
Brand Name: Okaf
Certification: CE/FCC/RoHS
Model Number: OK-JP07NVR

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard carton
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram etc
Supply Ability: 2500pcs per month
Detailed Product Description
Resolution: 1280*960 Type: 3-axis Joystick
Signal: IP Power Supply: DC12V
Function: Pan/Tilt/Zoom Control Warranty: 1year
OEM/ODM: Welcome Advantage: LCD Screen+keyboard
High Light:

ptz camera keyboard controller

,

joystick ptz controller

Network PTZ Camera Controller Local Storage RS485 Controller With Screen



Product description:



1, Adopts three in one-style design with highly integrated, Car NVR, 3 dimensional vehicle control keyboard and 7 inch high resolution display,saving space and connections.

2, Support 8 channel 960P/4 channel1080P input.

3, 7 inch,1280*960 resolution display.

4, Four Dimensional Joystick Control of PTZ Functions.



5, Using H.264 coded format,high compression,clear image, small part of disk space.

6, Support Onvif and RTSP, support many famous brand ip ptz Coding.

7, Support power-down protection ,the system have protective function when power is failed.

8, Using industrial electronic component design



Parameters:



Product Parameter:
Part.No OK-JP07NVR
Operation System Embedded LINUX
Image encoding The picture quality can be adjusted
double code streams Each channel can be set
Resolution 1080P(1920×1080)3frames/sec/960P/(1280×960)/720P(1280×720)30frames/sec.
Image quality 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Dynamic Inspection can be set 6 level of sensitivity(need IPC support)
Image Playback quality 1X720P/960P,1/4 1080P 1080P playback
  Each path supports 4 zone block(need IPC support)
Video mode Support manual, automatic, dynamic monitoring, alarm trigger video mode( some need IPC support)
backup mode Support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup
Display size 7inch:16:9
Resolution 1280*960
Control Network video(mode) 8×(1280*960)+sub[960*576]+1Ref.+4Play
    4×(1920*1080)+sub[960*576]+4Ref.+1Play
    1×(1920*1080)+sub[960*576]+4Ref.+1Play
  Display Size 7inch HD,LCD;
  Interface RJ45,10M/100M adaptable ethernet interface
  other interface 2*USB 2.0port
  protocol ONVIF,RS-485
  SATA E-SATA/Mobile HD/USB flash disk
  Max.memory Each interface supports a hard disk with a maximum capacity of 4TB
Power Supply 12V2A
Power Consumption ≤10 Without hard disk)
Working Temperature -10℃~+55℃
Installation Method Vehicle mount
