Product Details:
Payment & Shipping Terms:
|
| Control Protocol: | Pelco-D/Pelco-P | Distance: | 100m |
|---|---|---|---|
| Pixel: | 2MP | Function: | 360 Degree Rotation |
| Night Distance: | 100m | Zoom: | 20X Optical Zoom |
| Signal: | IP/SDI/AHD/Analog | Warranty: | 1year |
| High Light: | hd pan tilt zoom ip camera,ptz night vision camera |
||

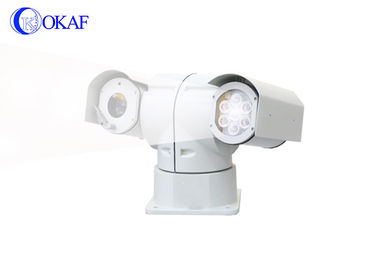

2 Mega Pixels Full HD PTZ Camera White Light IP Safety City PTZ Camera
Product description:
2. It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
3. It applies full digital control, flexible programming, drive line compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
4. The maximum resolution to support 1080P@30fps
5. Supporting dual stream and HD capture
6. Supporting variety of HD Platform connection
7. It can be used on car surveillance.DC11V-DC18V
8. Weatherproof design, high die-cast aluminum casing,work temperature,-35℃~+55℃.,with sun-shield housing and wiper
9. With white light range up to 100 meters ,it could catching image promptly at night.
10. 360°Continuously rotation ,upward angle +90°~ -90°,no blind spot.
11. Pan preset speed 100°/S,tilt preset speed 80°/S,with 256 preset positions ,6 cruising tracks.
12. Can be set to auto-cruise, horizontal sc anning, the camera mode and displays the title.
13. PTZ coordinates, the lens magnification display function.
14. PTZ coordinates, the lens magnification display function.
15. Car-surveillance shock absorber for optional
Parameters:
| PTZ Camera Parameters | |||
| Pan preset speed | 120°/S(manual control 0°～80°/S) | ||
| Tilt preset speed | 60°/S(manual control 0°～40°/S) | ||
| Pan range | 360° | ||
| Tilt range | ＋90°～－90° | ||
| Electric machinery | stepping motor (belt gearing) | ||
| Preset positions | 256 Preset positions | ||
| Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) | ||
| Baud rate | 2400Bps~19200Bps | ||
| Control protocol | Pelco-D/Pelco-P | ||
| Distance | 100m | ||
| Audio input/output | Support | ||
| Alarm Input/ Output | Support | ||
| Operating temperature | －35°C~＋65°C | ||
| IP Grade | IP66 | ||
| Power Supply | DC10.5V~DC18V(5A) | ||
| Weight | 7KG(net weight) | ||
| IP Movement | |||
| Model | 20IP | 30IP | |
| Imaging sensor | 1/2.8inch “Exmor”CMOS | 1/2.8inch“Exmor”CMOS | |
| Effective pixels | 2.1 mega pixels | 3 mega pixels | |
| Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) | ||
| Min.illumination | 0.095 lUx (F1.6,ICR open) | ||
| Frame rate | 25FPS & 30FPS | ||
| Double stream | H.265/H.264 | ||
| SDK Docking | standard ONVIF protocol, support SDK secondary development | ||
| SDI/AHD Movement | |||
| Model | SDI | AHD | |
| Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS | |
| Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) | |
| Frame rate | 60FPS & 30FPS | 30FPS | |
