|Feature:||360 Degree Rotation||Usage:||Police, Military, Ambulance Forensic|
|IP Grade:||IP66||Image Sensor:||1/2.8type EXmor CMOS|
|Night Vision:||50m||Zoom:||20X Optical Zoom|
Roof Mounted Vehicle PTZ Camera Infrared Dome IP Mini With High Defination
|PTZ Camera Parameters|
|Pan preset speed||120°/S(manual control 0°～80°/S)|
|Tilt preset speed||60°/S(manual control 0°～40°/S)|
|Electric machinery||stepping motor (belt gearing)|
|Preset positions||256 Preset positions|
|Alarm Input/ Output||Support|
|Imaging sensor||1/2.8inch “Exmor”CMOS||1/2.8inch“Exmor”CMOS|
|Effective pixels||2.1 mega pixels||3 mega pixels|
|Lens||20X optical zoom f=4.7 -94.0mm (18.20.30X optional)|
|Min.illumination||0.095 lUx (F1.6,ICR open)|
|Frame rate||25FPS & 30FPS|
|SDK Docking||standard ONVIF protocols,Support SDK secondary development|
|Imaging sensor||1/2.5inch CMOS||1/4inch CMOS|
|Effective pixels||30X 3 mega pixels (decided by movement)||36X 2 mega pixels (decided by movement)|
|Frame rate||60FPS & 30FPS||30FPS|

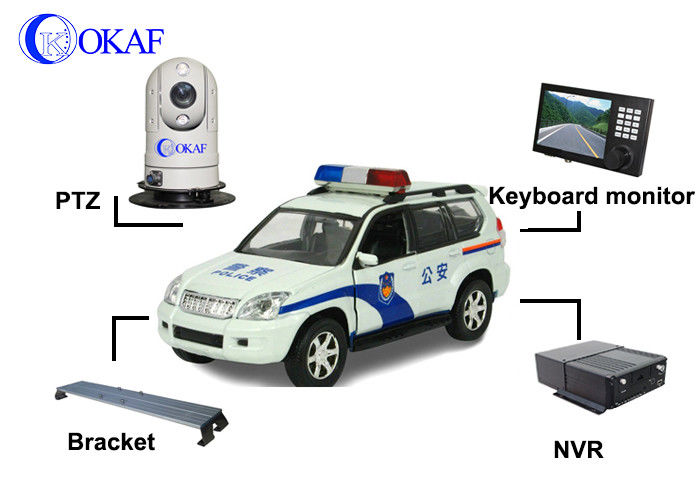

1. PTZ camera:
HD IP infrared vehicle PTZ camera, Pan range: 360°continuously rotation, Tilt range: 180°. Built-in thermostat and defogging devices, large power LED light source. IR distance: 50M at night. 2MP 1080P high definition, 20X optical zoom camera movement. Double ICR filter switch, automatic focus.
2. Vehicle intelligent terminal:
All interface adapts aviation integration interface, simple and safe. H.264 video compression format, the compression ratio is high, the image is clear. Support 4CH 1080P HD video input; support 3G, 4G, built-in GPS, intercom etc; support hard disk, max. 2T; Support WIFI extension; support automatic upload video instead of backup by people.
3. Control and display system:
The two-in-one design of keyboard and moniter is easy for installation and easy for controlling PTZ.It could control wiper and IR lights on/off by shortcuts. It’s saving space and install conveniently with few cables.
4. Mounting bracket:
Applicable to Pickups, Minibus Santana 2000, Passat, Changfeng Cheetah, Wuling van, Mitsubishi off-road vehicles, BYD electric carsand so on, according to customer requirements to be customized.
5. Application areas:
Applicable to the vehicle of road administration, traffic police,Public security and communications command( road, highway, fishery etc.)and other special purpose vehicle monitoring.can be used for forensic, emergency Rescue, field survey, construction operations, accident handling, emergency repair and other lighting conditions under poor environment.
